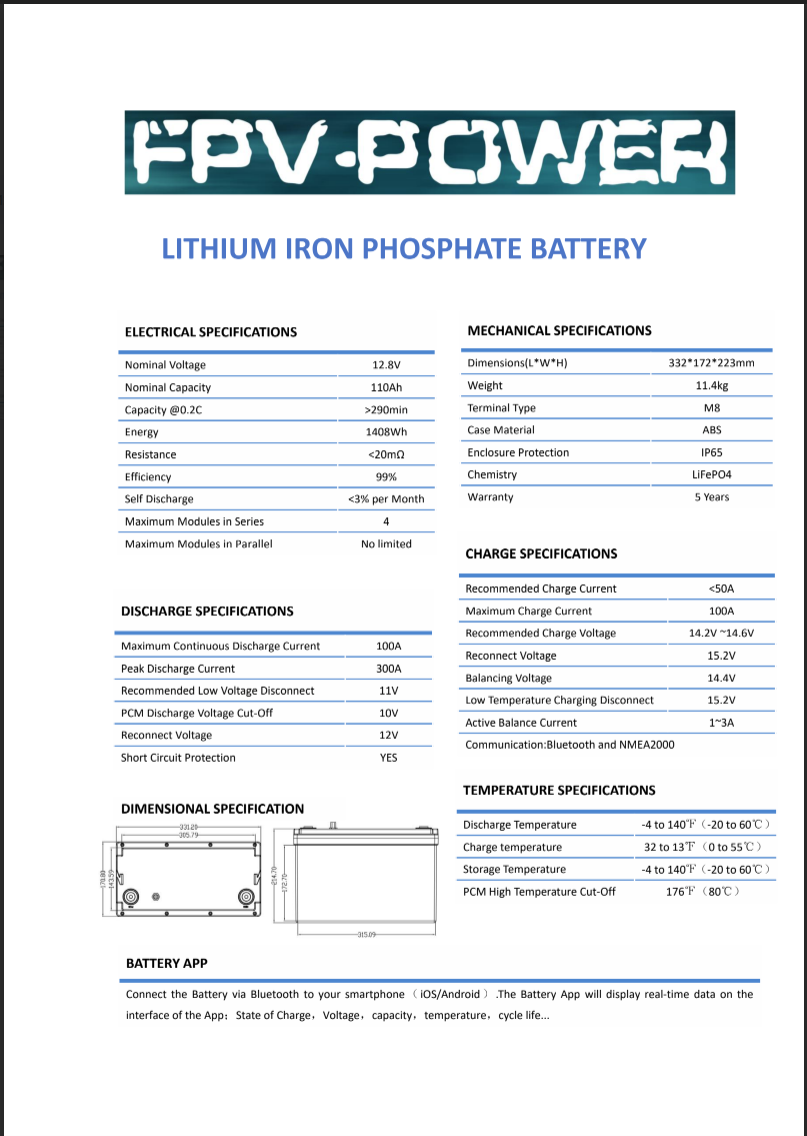

ELECTRICAL SPECIFICATIONS
Nominal Voltage 12.8V
Nominal Capacity 110Ah
Capacity @0.2C >290min
Energy 1408Wh
Resistance <20mΩ
Efficiency 99%
Self Discharge <3% per Month
Maximum Modules in Series 4
Maximum Modules in Parallel No limited
MECHANICAL SPECIFICATIONS
Dimensions(L*W*H) 332*172*223mm Weight 11.4kg
Terminal Type M8
Case Material ABS
Enclosure Protection IP65
Chemistry LiFePO4
Warranty 5 Years CHARGE SPECIFICATIONS
Recommended Charge Current <50A
Maximum Charge Current 100A
Recommended Charge Voltage 14.2V ~14.6V
Reconnect Voltage 15.2V
Balancing Voltage 14.4V
Low Temperature Charging Disconnect 15.2V
Active Balance Current 1~3A
Communication: Bluetooth and NMEA2000
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 100A
Peak Discharge Current 300A
Recommended Low Voltage Disconnect 11V
PCM Discharge Voltage Cut-Off 10V
Reconnect Voltage 12V
Short Circuit Protection YES
TEMPERATURE SPECIFICATIONS
Discharge Temperature -4 to 140°F(-20 to 60°C)
Charge temperature 32 to 13°F(0 to 55°C)
Storage Temperature -4 to 140°F(-20 to 60°C)
PCM High Temperature Cut-Off 176°F(80°C)
DIMENSIONAL SPECIFICATION
Refer to Diagram
BATTERY APP
Connect the Battery via Bluetooth to your smartphone(iOS/Android).The Battery App will display real-time data on the
interface of the App; State of Charge,Voltage,capacity,temperature,cycle life...
