ELECTRICAL SPECIFICATIONS
Nominal Voltage 25.6V
Nominal Capacity 110Ah
Capacity @0.2C >290min
Energy 2816Wh
Resistance <10mΩ
Efficiency 99%
Self Discharge <3% per Month
Maximum Modules in Series 1
MECHANICAL SPECIFICATIONS
Dimensions(L*W*H) 483*170*240mm Weight 24.7kg
Terminal Type M8
Terminal Torque 80~100 in-lbs(9~11Nm)
Case Material ABS
Enclosure Protection IP65
Chemistry LiFePO4
Warranty 5 Years CHARGE SPECIFICATIONS
Recommended Charge Current <50A
Maximum Charge Current 100A
Recommended Charge Voltage 28.4V~29.2V
BMS Charge Voltage Cut-Off 31.2V
Reconnect Voltage 30.4V
Balancing Voltage 28.8V
Active Balance Current 1~3A
Communication:Bluetooth and NMEA2000
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 150A
Peak Discharge Current 400A
Recommended Low Voltage Disconnect 11V
PCM Discharge Voltage Cut-Off 10V
Reconnect Voltage 12V
Short Circuit Protection YES
TEMPERATURE SPECIFICATIONS
Discharge Temperature -4 to 140°F(-20 to 60°C)
Charge temperature 32 to 13°F(0 to 55°C)
Storage Temperature -4 to 140°F(-20 to 60°C)
PCM High Temperature Cut-Off 176°F(80°C)

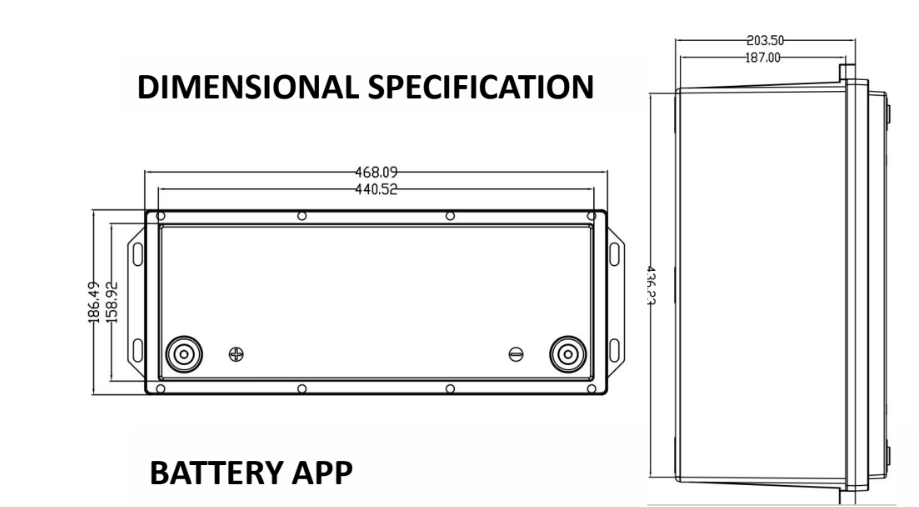

DIMENSIONAL SPECIFICATION
Refer to Diagram
BATTERY APP
Connect the Battery via Bluetooth to your smartphone(iOS/Android).The Battery App will display real-time data on the
interface of the App;State of Charge,Voltage,capacity,temperature,cycle life...
